manufacturers of cassava processing flour machines

Release Time:2019-12-12 14:55Author:sd888Source:未知

Any questions about the product can be communicated with us at any time!

Service Phone:0086 371 26630769
the complete set of cassava processing machine is the equipment for processing cassava into different products according to the needs of customers. Cassava processing products include cassava starch, cassava flour, garri and so on. This article will focus on compplete set of cassava processing machine for starch processing.

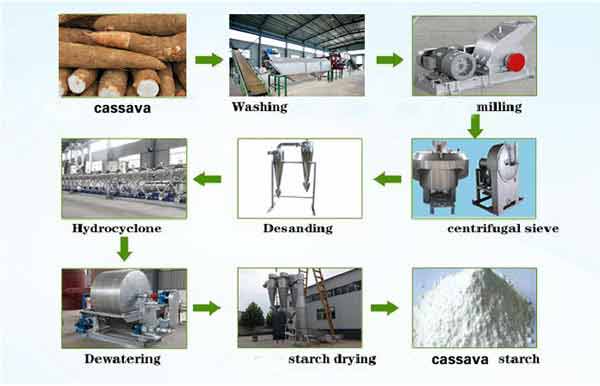

Cassava is widely plant in Africa and has advantage of easy-growing and high yield. It is best choice for starch processing in Africa area. The used cassava starch processing machine used for cassava starch processing includes dry sieve, paddle washing machine, rasper, centrifuge sieve, fine fiber sieve, desander, hydrocyclone station, peeler centrifuge, flash dryer, automatic packing machine and automatic control system.

Here is the detail introduction of cassava starch processing machine
1.Dry sieve for cassava cleaning
The introduction of fine fiber sieve

Fine fiber sieve is a kind of low speed centrifuge sieve which is mainly used used to separate fine fiber from starch slurry during starch production process. It usually be used after the centrifuge sieve in the starch production line to further remove the fine fiber. This machine mainly takes use of low centrifugal force and gravity of starch slurry to achieve the separation function. The application range of fine fiber sieve is very wide, it is widely used in sweet potato starch, cassava starch, wheat starch and other starch production enterprises.
The structure and working principle of fine fiber sieve

The structure of fine fiber sieve is simple. It is mainly composed of drum, tank, bracket, upper cover, drive system, feed system, backwash system and spray system. When working, the starch slurry pumped by the starch pump enters the feed end of the drum through the feed inlet. The drum consists of a bottom screen frame and a surface screen.The drum is driven by the drive system to rotate at a constant speed, thus driving the material to move on the screen of the drum. Under the effect of spray water flushing, the starch of small particles enters the slurry collection tank through the surface screen and is discharged from the collection port. While the fine fiber and other impurities which can not pass through the screen, stay on the screen and discharge from the slag outlet. Thus the separation of cassava starch and fine fiber is completed. The whole drum part depends on the support of the drum bracket part which has the function of automatic centering. In the process of separating fine fiber from starch, there is a backwashing system outside the drum. The nozzle keeps spraying the back of the mesh to ensure that the blocked surface is washed in time.
cassava-processing-machines-manufacturers
cassava processing machine manufacturer

The accumulated fine fiber is then washed away, so as to ensure the permeability of the screen. SIDA fine fiber sieve is made of titanium mesh which can ensure the mesh thinner. And the screen is the fictitious graticule structure, so that the big particles is separated, and the fineness of the final cassava starch is then be guaranteed.
2.Paddle washing machine for cassava washing
3.Rasper for cassava crushing
4.Centrifuge sieve for slurry and residue separation
5. Fine fiber sieve for further separating
6.Desander
7.Hydrocyclone station
8.Peeler centrifuge
9. Flash dryer for starch drying
10.Automatic packing machine
11.Automatic control system: The last cassava starch processing machine is automatic control system which consists of MCC operation cabinet, OCC control cabinet, LCB cabinet and matched CCTV monitoring system. It can help control the whole cassava starch processing procedure to ensure the quality of cassava starch.
