Corn syrup processing machine

Release Time:2020-07-14 10:25Author:sd888Source:未知

Any questions about the product can be communicated with us at any time!

Service Phone:0086 371 26630769

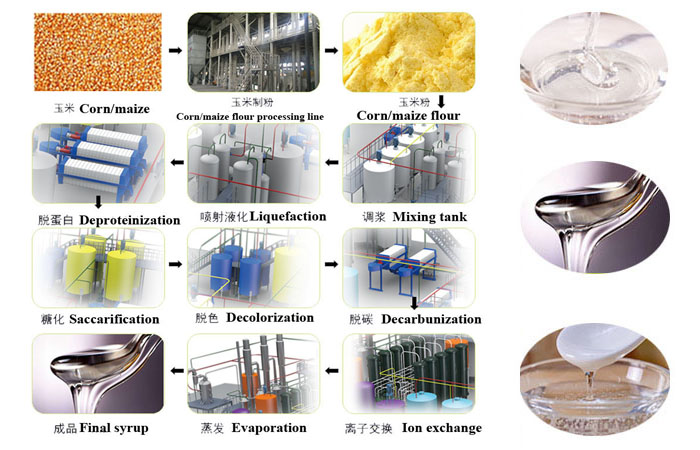

In summary, the production steps of corn syrup can be divided into three parts: starch hydrolysis and sugar production, removing impurities, evaporating water and obtaining the required DS value syrup.

Corn-syrup-processing-machine
Now, we have established more than 5 corn syrup processing plants in China. In addition, we also have many corn syrup processing plants around the world. If you plan to build a corn syrup processing plant, we will be a good supporter.
1st step Mixing Slurry:
Put the corn starch powder and certain water into the mixing tank in corn syrup processing plant, then put in enzyme, keep on particular standard temperature and PH value as specified, waiting for some time, then transport to next work section.

2nd step Injector Liquefaction
The mixed corn starch powder milk is sent to buffer tank then liquefied by jet cooker with the aid of enzyme at high temperature in regular time for corn syrup processing plant liquefaction process.

3rd step Filter Press Deproteinization
Because of inside of the corn starch slurry contains a certain percentage of protein, so the slurry need pumping into the press filter for corn syrup processing plant processing, after press the slurry, the syrup will flow into the slot for next saccharification process, the protein will stay inside the filter machine and then discharged for sale.
4th step Saccharification in corn syrup processing plant:
The liquefied material is sent to enzyme saccharification tank for reaction. Maintain at specific temperature for some time, the syrup will transfer to glucose syrup with the required DE value .

5th step Decolorization:
After LAB testing in corn syrup processing plant, that make sure we have got required DE value syrup, all the glucose syrup is pumped into the decoloration tanks, at uniform temperature, put in the activated carbon mixing with the glucose syrup, usually have to make twice to get pure glucose syrup.

6th step Filter Press Decarburization
The glucose syrup with activated carbon will be pumped into the press filter, after press the clean glucose syrup will flow into the buffer tank, the activated carbon will stay inside the filter and then discharged outside in corn syrup processing plant.
7th step Ion Exchange
The clean glucose syrup pumping into the ion exchange columns, inside the column resin will attract all the cation and anion and other small electron, then will get very pure glucose syrup for people eating. This equipment always is used for high quality syrup produce in corn syrup processing plant.

8th step Evaporation process:
The pure and clean corn syrup have very low density, the triple effect evaporator can evaporate frucotse inside water to outside increase density at very short time. Then pump the corn syrup into the single-concentrate of evaporator continue evaporate water for concentrating to reach the required DS as final product corn syrup in corn syrup processing plant.
Corn syrup is a food syrup made from corn starch, depending on the grade, which contains different levels of maltose and higher oligosaccharides. As for the production technology of the corn syrup processing plant, we use two enzymatic processes to process corn syrup from corn starch. This means that in the liquefaction and saccharification parts, we will place different enzymes to ensure that the final product is high-quality corn syrup. The above is the detailed process description of the corn syrup processing plant:
